Sportident Control Station BSF8
Sportident Control Station BSF8

Sportident Control Station BSF8

The BSF8 station is a universal unit which can be used as a control, start, finish, check, and a vast variety of SI Air functionality. This station is fully capable of SI Air+ touch-free timing (for SIAC users when unit is set in Beacon mode).

  • blue
  • red

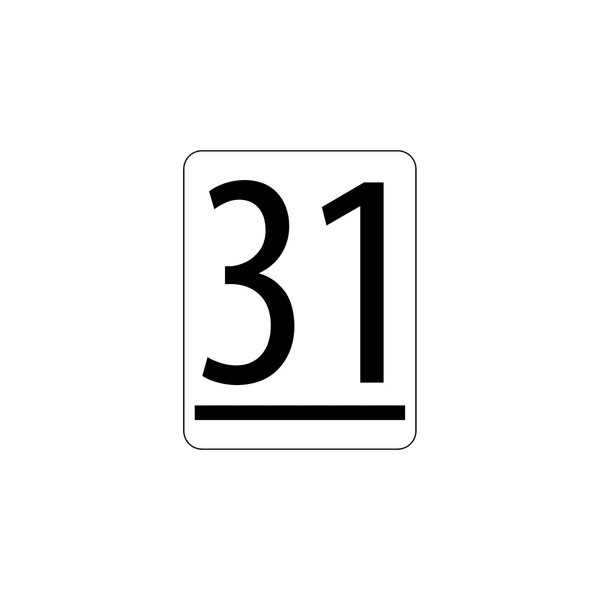

Label for SI-Station
  • without label
  • with label
In stock
91.67 €
0% VAT Ready to ship

  • Worldwide Delivery Worldwide Delivery

The SPORTident Station BSF8 is based on a newly developed hardware core. The BSF8 design offers a number of significant improvements with lower power consumption and new features compared with the older series of SPORTident Stations. It becomes more easy to configure since the BSF8 station has top/bottom display and is still compatible with the already existing SPORTident- System equipments.

Additionally, the new BSF8 is also available with short range radio (SRR) which enables wireless transmission of SPORTident data records over distances of up to 8 metres. The radios are working in the licence-free 2.4 GHz radio-band and can be used worldwide. SRR creates a wireless data bridge to a receiver or repeater mounted some metres away by using SRR dongle. SRR dongle receives data records sent from BSF8-SRR and SIAC. The device features an USB interface for easy connection with PC, laptop or other standard communication equipment.

  • Control station for universal use
  • Modes: check/clear/start/control/finish
  • "Auto-on" with first punch; no special switch on action
  • User feedback system (optical & acoustic)
  • Service-display on bottom side
  • Internal backup-memory up to 21802 control records
  • Initializing by inductive coupling
  • Internal lithium battery (1/2 AA-size, 1 Ah); typical working time without battery change 3-5 years
  • True battery voltage measurement
  • Precision real time clock
  • New smooth and compact device

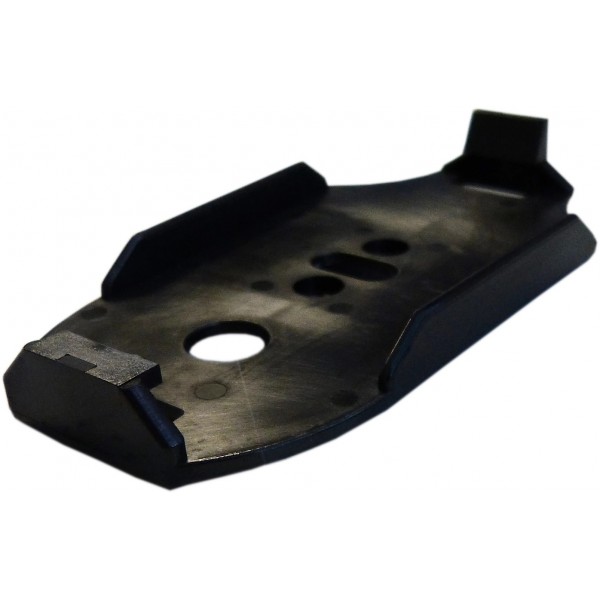

  • Snap mounting supported, mounting holes

You may add the preferred configuration / numbers of the stations in the comment field of your order.

Data sheet

101 x 51 x 19 mm
